SmartTank

Milk cooling tank for fresh milk feeding

Efficient milk cooling and storage with the SmartTank

The SmartTank is a milk cooling tank with electrode control and CIP (Cleaning in Place) and contributes to high-quality calf feeding due to the continued closed system. The stainless steel milk cooling tank efficiently stores and cools fresh milk for calf feeding..

The SmartTank can be filled via the MilkCollector or a milk line. When milk is pumped into the milk cooling tank, it is kept at a constant temperature from the start, even in the smallest quantities, without milk or milk residues freezing.



From the SmartTank to the calf feeder

High quality milk is also very important for fresh milk feeding, as it contributes to optimal calf health. Thanks to the efficiently and constantly cooled milk, the milk cooling tank can provide the high-quality milk to the automatic calf feeder for fresh meals when needed. When the Calf Feeder needs milk, it is sucked in by the SmartTank, mixed with MAT if necessary and can then be passed on to the calf in the best quality. The simple operation of the SmartTank can be done via the automatic feeder.



Hygienic milk cooling tank

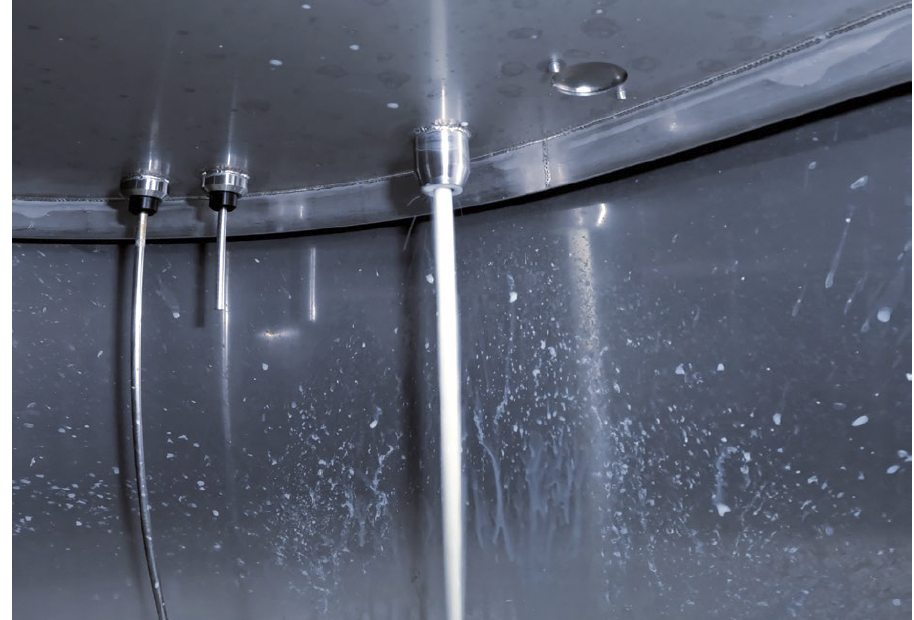

With a focus on milk, the SmartTank also places great importance on hygiene. Therefore, the milk cooling tank has a cleaning function. The automatic cleaning is integrated into the cleaning process of the calf feeder and, for optimum hygiene, all milk-carrying parts can also be cleaned daily with two different detergents. This simultaneously improves the hygiene status and reduces the manual cleaning effort.



Advantages of the SmartTank at a glance

  • Efficient cooling of fresh milk, even in very small quantities
  • Maintaining high milk quality
  • Reduced work effort
  • Closed system from the udder to the calf feeder
request further information
The Automatic Milk Management for efficient milk routes and fresh milk feeding with high quality milk

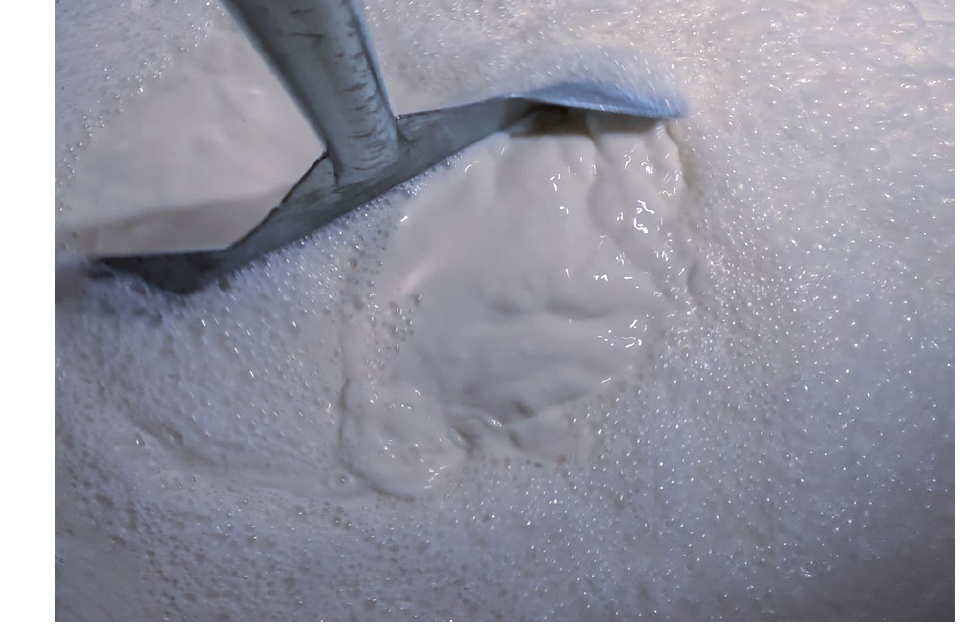

The SmartTank cools and stores fresh milk for calf feeding efficiently
The SmartTank cools and stores fresh milk for calf feeding efficiently

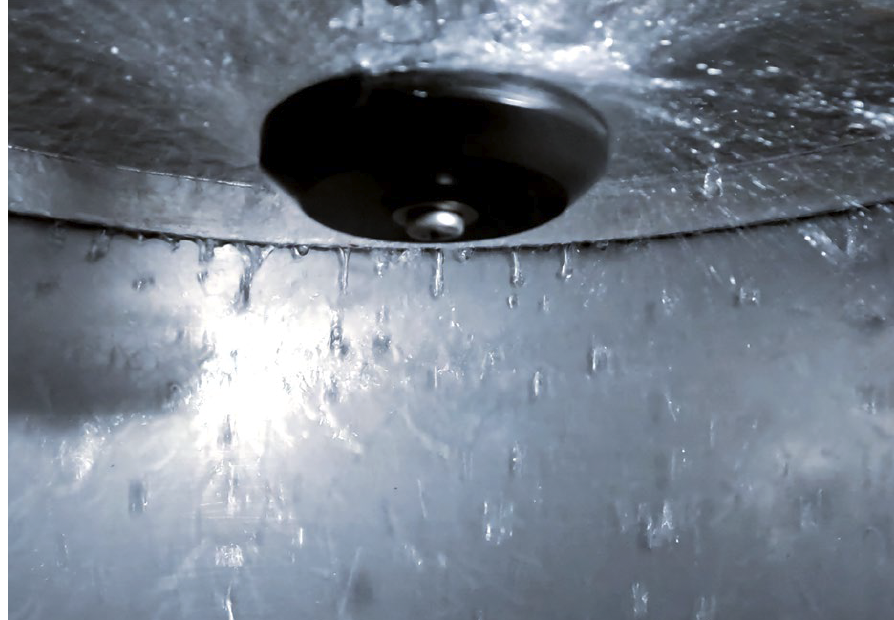

The SmartTank is also cleaned with the circulation cleaning of the calf feeder
The SmartTank provides the calf feeder with fresh milk at any time
The SmartTank provides the calf feeder with fresh milk at any time


Technical Data100l SmartTank300l SmartTank
Capacity100l300l
Central power supply230V / 50Hz230V / 50Hz
Dimensions (Hxw)166cm/78cm170cm/113cm
Diameter68cm99cm
Empty weight72 kg128 kg
